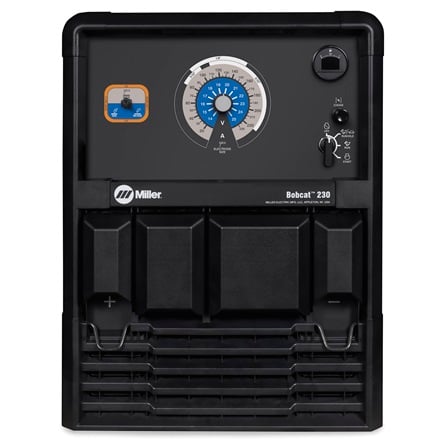

Miller Bobcat 230 Welder/Generator – Vanguard Engine - 907847
-
The Miller Bobcat 230 Welder/Generator (907847) with a Vanguard® 23.5 HP gasoline engine delivers exceptional arc performance and up to 11,000 watts of AC power in one compact, rugged package. Built for construction, farm, and service-truck work, it runs quieter, uses less fuel, and offers 100% duty cycle reliability.
Now eligible for a $500 Build With Blue™ rebate (valid Oct 1 – Dec 31, 2025).
$6,785.00
Miller Bobcat 230 Welder/Generator – Vanguard Engine (907847)
The trusted jobsite workhorse — now with a $500 rebate.
The Miller Bobcat 230 (907847) with a Vanguard® gasoline engine delivers dependable welding performance and up to 11,000 W of generator power in one compact, durable package. Designed for professionals who demand reliability and mobility, this machine provides smooth DC welding output, full auxiliary power, and quiet, fuel-efficient operation for construction, farm, and field work.
💰 Limited-Time Rebate — Save $500 (Oct 1 – Dec 31, 2025)
Purchase a qualifying Miller Bobcat 230 Vanguard (907847) between October 1 and December 31, 2025, and receive a $500 Build With Blue™ rebate directly from Miller.
Must submit your claim online at millerrebatecenter.com within 30 days of purchase.
GET MORE SAVINGS WHEN YOU ADD ON MILLER® ACCESSORIES* OR HOBART® FILLER METALS.
🔧 Key Features
-
Vanguard 23.5 HP Gasoline Engine: Proven reliability and performance in the field.
-
Separate Weld & Generator Circuits: Use full auxiliary AC power even while welding.
-
Exceptional Arc Performance: Smooth starts, consistent output, and clean weld puddles across Stick, MIG, and Flux-Cored applications.
-
Compact, Lightweight Design: 13 % smaller and more than 100 lb lighter than previous models.
-
Quiet Operation: Engine enclosure and advanced airflow reduce noise — 73 dB while welding, 64 dB at idle.
-
Single-Knob Control Interface: Simplified setup and precise amperage control.
-
Durable, Service-Friendly Design: Heavy-gauge steel panels, side-access service points, and long-life components.
-
True Blue® 3-Year Warranty: Industry-leading coverage and nationwide service network.
📦 What’s Included
-
Miller Bobcat 230 Welder/Generator (Model 907847)
-
Vanguard 23.5 HP V-Twin gasoline engine
-

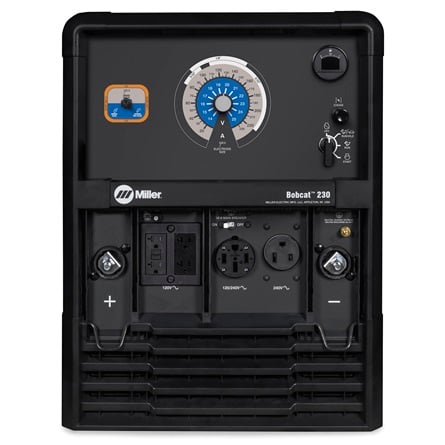

Electric start system and control panel with 120 V / 240 V AC outlets
-
Weld output terminals and auxiliary power receptacles
-
Integrated lift eye and base mount points
-
Operator’s manual and warranty registration
(Welding leads, running gear, and accessories sold separately.)
⚙️ Detailed Specifications
| Category | Details |
|---|---|
| Part Number | 907847 |
| Processes | Stick (SMAW), MIG (GMAW)*, Flux-Cored (FCAW)* |
| Welding Output Range | 20 A – 230 A DC |
| Rated Weld Output | 230 A @ 29.2 V (Stick) / 230 A @ 25.5 V (MIG/FCAW) – 100 % Duty Cycle |
| Auxiliary Power Output | 9,500 W continuous / 11,000 W peak (single-phase AC) |
| Power Receptacles | (2) 120 V 20 A duplex • (1) 240 V 50 A receptacle |
| Engine Brand / Model | Vanguard V-Twin OHV 4-cycle, air-cooled gasoline |
| Horsepower | 23.5 HP @ 3,600 RPM |
| Fuel Capacity | 11 gallons (41.6 L) |
| Fuel Type | Unleaded gasoline |
| Run Time @ Idle | Approx. 14 hours (1.0 GPH avg.) |
| Idle / Weld Speed | 2,300 RPM / 3,600 RPM |
| Noise Level | 64 dB @ idle • 73 dB @ weld (7 m distance) |
| Dimensions (L × W × H) | 37.1″ × 20.1″ × 26.5″ (943 × 511 × 673 mm) |
| Weight | Approx. 376 lb (170.5 kg) |
| Battery Charging Output | 12 V DC, 40 A |
| Duty Cycle Efficiency | 100 % @ 230 A DC Stick |
| Cooling System | Fan-On-Demand™ forced-air cooling |
| Starting System | Electric start with engine off switch and fuel shutoff |
| Warranty | 3-Year True Blue® Warranty |
| Country of Origin | USA |
*MIG and FCAW processes require optional wire-feeder accessories.
🎥 Product Video
🧠 Applications
-

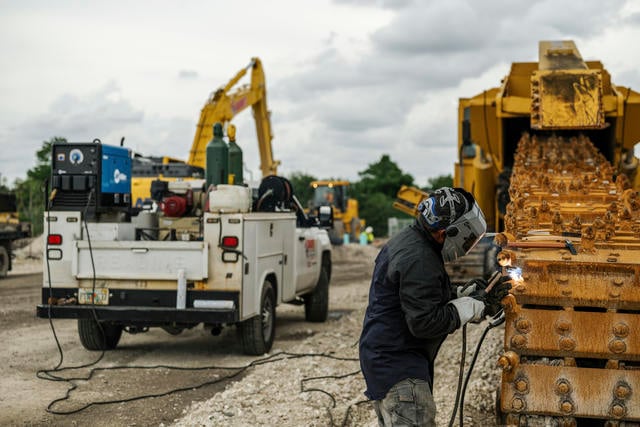

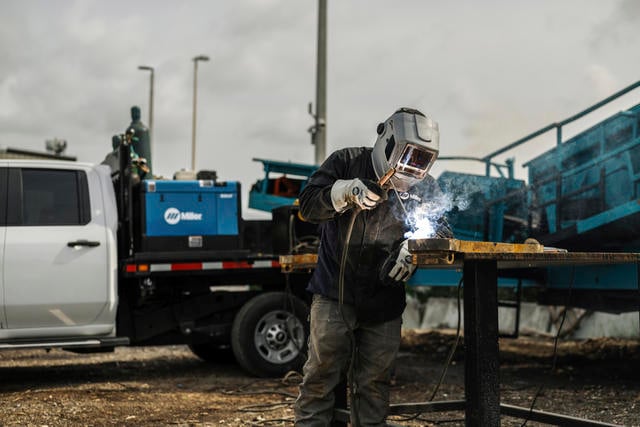

Field fabrication and construction
-
Farm and ranch maintenance
-

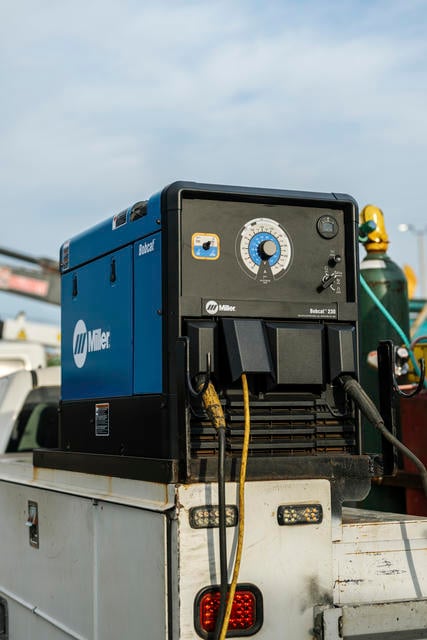

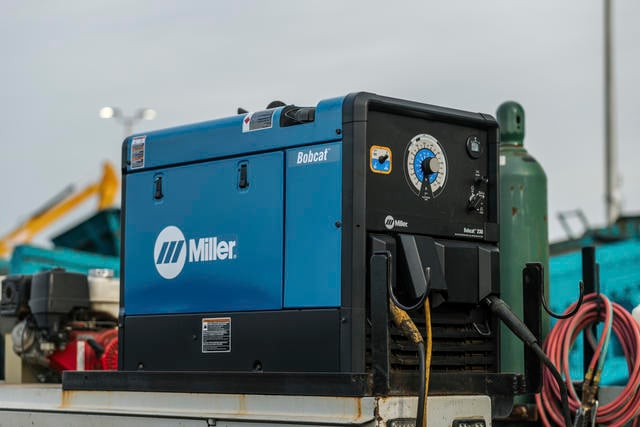

Mobile service trucks and repair trailers
-
Structural steel and plant maintenance
-
Remote sites needing on-board power and welding
❓ Frequently Asked Questions
Q: Can it run power tools while welding?
Yes — the Bobcat 230 Vanguard supplies full auxiliary power even when welding.
Q: Is this version quieter than previous models?
Yes — noise levels have been reduced up to 30 %, with advanced airflow design and enclosure.
Q: Does it come with running gear or leads?
Not by default — these accessories are optional add-ons.
Q: Is it eligible for a rebate?
Yes — this Vanguard model (907847) qualifies for a $500 Build With Blue™ rebate valid Oct 1 – Dec 31 2025.
🏅 Why Buy from Service Welding Supply
-
Authorized Miller® Distributor – Genuine products with factory warranty
-
Fast, secure U.S. shipping
-
Expert support from certified welding specialists
-
Free standard shipping on qualifying orders
-
Trusted since 1981 for professional welding equipment and supplies
Product Literature
Processes
General Specifications
| Title | Bobcat™ 230 (Vanguard) |
|---|---|
| Applications | Fabrication Industrial Welding Mobile Fabrication & MRO |
| Industries | Construction & Fabrication Farm & Ranch |
| Amperage | 20 A – 230 A |
| Weldable Metals | Stainless Steel Steel |
| Current Type | DC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Engine Brand | Vanguard |
| Engine Idle Speed | 2400 RPM |
| Engine Weld Speed | 3600 |
| Fuel Tank Size | 11 Gallon |
| Fuel Type | Gasoline |
| Horsepower | 23 hp |
| Weld Output | CC / CV |
| Rated Output | CC/DC Stick 230 A at 29.2 V, 100% duty cycle, CV/DC MIG/FCAW 230 A at 25.5 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 9500 W |
| Single Phase Auxiliary Peak Power | 11000 W |
| Sound Rating | 64 dB @ idle and 73 dB @ weld |
| Net Width | 20.13 in |
| Net Height | 26.5 in |
| Net Length | 37.06 in |
| Net Weight | 376 lbs |
| Warranty | 3 Years Miller’s True Blue Warranty |
