Miller Dynasty 800
, , SKU: 951000006

Miller Dynasty 800 208-575 V Tig Welder Foot Control Complete Package - 951000006

-

The Dynasty 800 is a powerful, compact power source capable of welding up to 1″ aluminum. Total arc control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.

$29,476.00

Business Financing Available

Available offers

$100
Orders above $3000
View applicable products
Click to copy
100off
0 0
Days
0 0
Hours
0 0
Minutes
0 0
Seconds

Features & Benefits

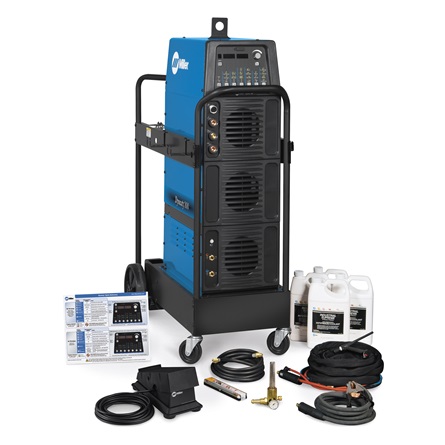

Miller Dynasty 800 208-575 V, Foot Control Complete Package



WHAT’S INCLUDED

    • Dynasty® 800
    • Coolmate™ 3.5
    • Runner Cart
    • Weldcraft™ W-400 torch kit and accessories (300186)
    • Coolant (4 one-gallon bottles of 043810)
    • RFCS-14HD foot control (301589)
    • Quick Reference Guide



Upgradeable and Expandable



Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.




Meter Calibration



Allows meters to be calibrated for certification.




AC and DC TIG Features



AC TIG Features Independent amplitude/amperage control allows EP and EN amperages to be set independently to precisely control heat input to the work and electrode.   Extended AC balance (30–99%) controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum.   AC frequency (20–400 hz) controls the width of the arc cone and the force of the arc.   DC TIG Features   Exceptionally smooth and precise arc for welding exotic materials.   High-speed DC TIG pulse controls – Pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage.   Learn More




Program memory



Program memory features 9 independent program memories that maintain/save your parameters.


Cooler-On-Demand™



Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.




Blue Lightning™ – High Frequency Arc Starter



For more consistent non-contact starts and greater reliability compared to traditional HF arc starters.




AC Waveforms



Advance Squarewave provides a fast freezing puddle, deep penetration, and fast travel speeds.   Soft Squarewave is used for a soft buttery arc with maximum puddle control and good wetting action.   Sine wave is for customers that like a traditional arc. It is quiet with good wetting.   Triangular wave reduces the heat input and is good on thin aluminum. It provides fast travel speeds.   Learn More


Stick Features



Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.




Cooler Power Supply (CPS)



An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 3.5. The power switch on the Dynasty also activates the receptacle to help prevent torch failure.   Learn More


Auto-Line Power Management Technology



Allows for any input voltage hookup (208 – 575 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.   Learn More



Specifications

PROCESSES

Stick (SMAW)
TIG (GTAW)
TIG AC (GTAW-AC)
TIG DC (GTAW-DC)
Aluminum Welding
Air Carbon Arc Cutting and Gouging (CAC-A)

GENERAL SPECIFICATIONS

Title Dynasty® 800 208-575 V, Foot Control Complete Package
Industries Interests Aerospace
Construction
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Railcar
Shipbuilding
Boat / Yacht
High Purity Processing
Material Thickness Steel 0.020 in. (0.5 mm) – 1 in. (25.4 mm)
Aluminum 0.020 in. (0.5 mm) – 1 in. (25.4 mm)
Weldable Metals Aluminum
Specialty Metals
Stainless Steel
Steel
Input Voltage 208 V
220/230/240 V
380/400 V
460/480 V
575 V
Input Phase 1- and 3-Phase
Input Hz 50/60 Hz
Current Type AC / DC
Max Open Circuit Voltage 75 VDC
Amperage Min 5 A
Amperage Max 800 A
Portability Lift Eye (Standard)
Running Gear / Cart (Standard)
Weld Output CC
Net Width 23.125 in
Net Height 53.125 in
Net Length 43.75 in
Net Weight 370 lbs
Warranty 3 Years
Miller’s True Blue Warranty

What's Included

WHAT’S INCLUDED

  • Dynasty® 800
  • Coolmate™ 3.5
  • Runner Cart
  • Weldcraft™ W-400 torch kit and accessories (300186)
  • Coolant (4 one-gallon bottles of 043810)
  • RFCS-14HD foot control (301589)
  • Quick Reference Guide
Gtin 715959702522 SKU: 951000006 Categories: , , Tags: , ,
Weight 370 lbs
Dimensions 43.75 × 23.12 × 53.12 in
